Pixel: | 2.16MP | Sensor: | 1/2.8" CMOS |
---|---|---|---|
Optical Zoom: | 3X | BLC: | Ya |
Max FOV: | 99,6 ° | Video Interface: | HDMI, USB2.0 |
Control Interface: | RS232 | IR Remote: | Yes |
Cahaya Tinggi: | usb ptz hd camera,usb conference room camera |
Mini Wide FOV 99,6 Derajat HDMI & USB 1080P 3X Zoom Optik Kamera Konferensi Video PTZ Dengan RS232 Didukung
fitur
※ Sensor CMOS terbaru, mendukung hingga keluaran video 1080P30;
※ Dukungan H.264, kompresi video MJPEG, protokol UVC standar
※ 2.16MP, 1 / 2.8 "CMOS, 3x optical zoom
※ Hingga 99,6 ° FOV
※ 1 input audio, 1 output audio
※ Antarmuka output video HDMI & USB
※ 2D / 3D canggih, kinerja kontrol kebisingan yang hebat
※ Mendukung protokol kontrol SONY VISCA standar
※ Dengan pengontrol jarak jauh IR atau antarmuka USB
※ Posisi yang tepat dan operasi yang stabil
Spesifikasi teknis
Model nomor. | AMC-M0301V2 |
Sensor gambar | 1 / 2.9 "Exmor CMOS, 2.18MP |
Resolusi | Maks 1080p / 30fps |
Kompresi Video | H.264 / MJPEG |
Iris | F1.7-F3.0 |
Perbesar | 3X Zoom Optik |
Bidang pandang | 99,6 ° - 30,6 ° |
Fokus | Fokus Sinkron |
Min.luminasi | 0.5Lux (Warna), 0.1Lux (B / W) |
Paparan | Otomatis / Manual |
Keseimbangan Putih | Otomatis / Manual |
BLC | Dukung |
PTZ | |
Rentang pan | -90 ° - + 90 ° |
Kisaran kemiringan | -30 ° - + 90 ° |
Kecepatan Pan | 30 ° / dtk |
Kecepatan Miring | 20 ° / dtk |
Nomor Preset | 32 |
Remote Control IR | Dukung |
Jaringan | |
Antarmuka Video | Satu HDMI |
Antarmuka Audio | Satu Baris IN; Satu Line Out |
Antarmuka Contorl | USB2.0, RS232 |
Versi Protokol UVC | UVC1.0 - UVC1.5 |
Kontrol UVC PTZ | Dukung |
Protokol Kontrol | VISCA |
Alamat | 1 - 7 |
Umum | |
Konsumsi daya | Di bawah 5W |
Sumber Daya listrik | DC12V |
Temp bekerja | 0 ° C - + 40 ° C |
Suhu penyimpanan | -20 ° C - + 60 ° C |
Dimensi | 163mm x 101mm x 116mm |
Bobot | 0,6 kg |
Warna | Hitam |
Aplikasi
AMC-M0301 USB 2.0 3X Zoom Optik HD PTZ Video Conference Camera baik digunakan pada ruang konferensi video kecil, kamera hingga 99,6 °, 3x zoom opitcal, hemat biaya dan kualitas tinggi

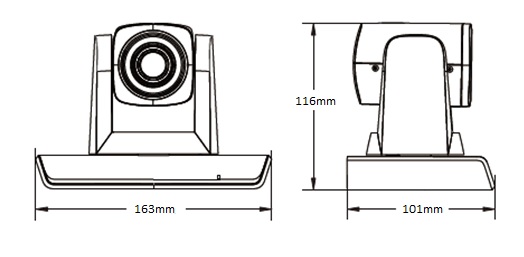

Gambar Dimensi
