Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Resolusi maksimal: | 3840x2106p30 | Jarak Fokus Min: | Lebar: 0,3 m Tele: 1m |
---|---|---|---|
Protokol IP: | TCP / IP, HTTP, RTSP, RTMP, ONVIF, DHCP | Sof: | didukung |
Dimensi: | 220mm x 173mm x 190mm | Berat bersih: | 1.25KGS (2.8LBS) |
Zoom: | 12x optical zoom + 2x digital zoom | Port Video: | HDMI / RJ45 / SDI / USB3.0 / USB2.0 |
Cahaya Tinggi: | conference room video camera,usb conference room camera |

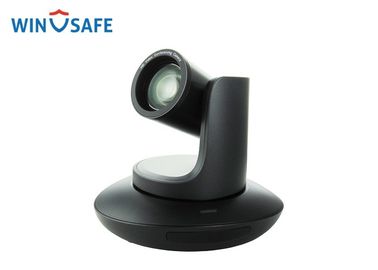

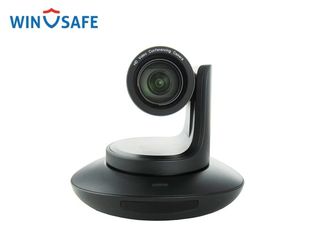

POE Didukung 4K Ultra HD USB Video Conference Camera Untuk Siaran Langsung / Telehealth
Sebagai kamera video 4K Ultra HD profesional, UHV -400H dengan IP / HDMI / SDI / USB3.0 dapat mencapai definisi maksimal 3840 x 2160, memastikannya dapat mewujudkan kapasitas konferensi video dan keamanan video yang luar biasa. Sebaiknya pilih itu sebagai solusi siaran AV.
Keuntungan:
※ 1 / 2.5 "Sensor 12MP, zoom optik 12X, FOV 72,5 °, lensa optik sudut lebar 4K
※ H.264, mendukung penyandian H.265, video 4K melalui IP
※ Output variabel tercakup, termasuk IP, HDMI, SDI, USB, cocok untuk berbagai tuntutan
※ POE dilengkapi, dapatkan video, kontrol, dan catu daya dengan kabel RJ 45 yang terhubung ke POE
※ Mendukung tiga protokol: Sony Visca Standar, Pelco-P, Pleco-D
※ Pelacakan sempurna dan kinerja pemfokusan saat zooming atau bergerak
※ Pengontrol IR: Alamat IP dan ramuan dapat diatur melalui menu OSD
Fitur:
※ Resolusi video Ultra HD 3840 x 2160 p30,
※ berbagai sudut PAN / Tilt, desain mekanik PTZ halus, kontrol motor pan / tilt lancar
※ 128 preset dan kontrol RS232 / 485 serta rantai daisy didukung
※ Protokol P / D Sony Visca dan Pelco
※ Fungsi flip gambar, cara instalasi variabel
※ Secara otomatis mencocokkan alamat IP, dan dapat dimodifikasi oleh pengontrol
※ Pengurangan noise 2D / 3D, WDR
※ BLC / Eletric shutter / Focus / Iris mendukung dua pilihan: otomatis / manual
※ Antarmuka video: HDMI / IP / SDI / USB3.0
※ 12X optical zoom + 2X digital zoom
Spesifikasi teknis
Model nomor. | UHV-400-H | |||
Sensor | 1 / 2,5 "inci, Sensor CMOS Kualitas Tinggi 12MP | |||
Format video | HDMI | AKU P | SDI | USB3.0 |
3840X2160P30 / 25 1080p50 / 50/30/25 720p60 / 50/30/25 1080i60 / 50 | Arus Utama: 3840x21060p30 1920x1080p60 Sub Steam: 1280x720, 704x576 640x480, 352x288 | 1080p60 / 50/30/25 720p60 / 50/30/25 1080i60 / 50 | 1080p60 / 50/30/25 720p / 60/50/30/25 | |
USB 3.0 & USB 2.0 | ||||
1024X576p30 960x540p30 640x360p30 352x288p30 | ||||
Perbesar | 12x optical zoom + 2x digital zoom | |||
Lihat Sudut | 6.3 ° (dekat) - 72.5 ° (jauh) | |||
F. Tidak. | Lebar: 1,84 Tele: 2,81 | |||
Jarak Fokus Min | Lebar: 0,3 m Tele: 1m | |||
Preset | 10 melalui remote kontrol, 128 melalui port serial, presisi preset: 0,1 ° | |||
Sudut rotasi | Pan: - 170 ° - + 170 °; Kemiringan: - 35 ° - + 90 ° | |||
Sudut roation | Pan: 0 ° - 120 ° / s; Miring: 0 ° - 80 ° / s | |||
Port Kontrol | RS232 / RS485 / RJ45 | |||
Port Video | HDMI / RJ45 / SDI / USB3.0 / USB2.0 | |||
Kecepatan Jaringan | 1000 jt | |||
Pengurangan kebisingan | 2D & 3D | |||
SNR | Lebih dari 50dB | |||
Focal length | f = 3.92 (dekat) - 47.32mm (jauh) | |||
Minimum Lux | 0.01Lux | |||
Keseimbangan Putih | Otomatis / Manual / Pelacakan Otomatis / OnePush / Indoor / Outdoor | |||
Anti Flicker | 50Hz / 60Hz / OFF | |||
Mode D / N | Didukung | |||
Gamma | Didukung | |||
Gambar cermin | Didukung | |||
Pan Tilt Flip | Didukung | |||
Iris | Otomatis / Manual | |||
Rana Listrik | Otomatis / Manual | |||
BLC | Otomatis / Manual | |||
Fokus | Otomatis / Manual | |||
Pengkodean Video | H.264 / H.265 | |||
Kontrol Kecepatan Bit | Laju Bit Variabel, Laju Bit Konstan | |||
Tingkat Bit Video | 1024Kbps - 30720Kbps | |||
Bingkai | 50HZ: 1fps - 50fps 60HZ: 1fps - 60fps (3840x2160 maks. 30f [s) | |||
Protokol IP | TCP / IP, HTTP, RTSP, RTMP, ONVIF, DHCP | |||
POE | Didukung | |||
Tegangan input | DC12V, 2A | |||
Dimensi | 220mm x 173mm x 190mm | |||
Berat bersih | 1.25KGS (2.8LBS) |

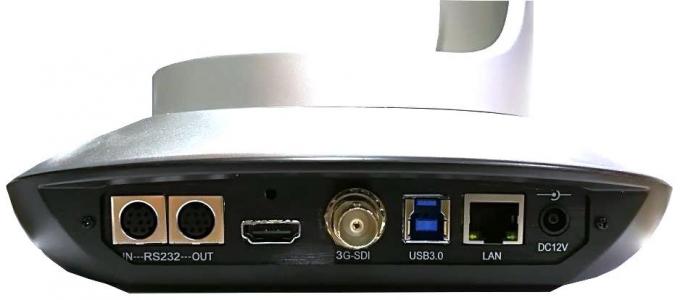

Antarmuka Input / Output
Gambar Dimensi (mm)
