High Definition Plane / Marine Night Vision Camera IP66 30X AC3-S3002H-IR

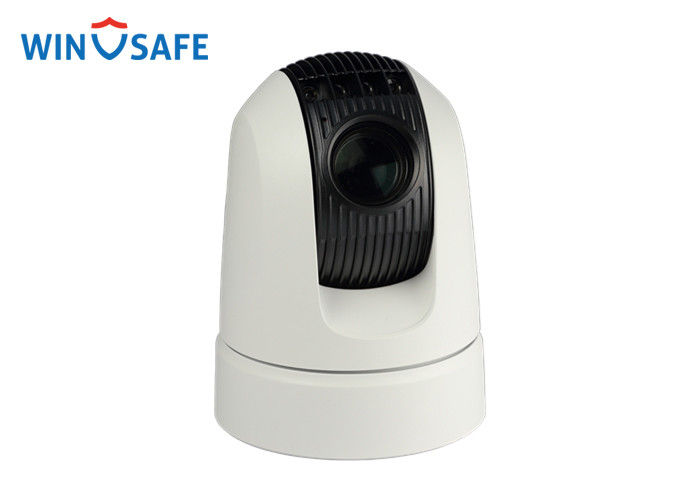

Gambar besar : High Definition Plane / Marine Night Vision Camera IP66 30X AC3-S3002H-IR

Detail produk:

Place of Origin:	CHINA
Nama merek:	WINSAFE
Sertifikasi:	CE/FCC
Model Number:	AC3-S3002H-IR

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1
Packaging Details:	Neutral Packing
Delivery Time:	5 - 8 Work Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	6000PCS/Month

Kontak

Detil Deskripsi produk

Comm. Interface:	RS-485	Video Interface(SD):	CVBS
Video Interface(HD):	HD-SDI	OSD Lanuage:	English
Pan Range:	360° Continuous	Tilt Range:	-15°-90°
IR Range:	60M	IR Wave Length:	850nm
Cahaya Tinggi:	hd pan tilt zoom camera , full hd security camera

High Definition Plane / Marine Night Vision Camera IP66 30X AC3-S3002H-IR

Features

※ Aluminum housing
※ IP66 weatherproof
※ Efficient 60M IR distance
※ ONVIF Compliant
※ Wide range of voltage input
※ Up to 1080p 30 resolution
※ H.264 video compression, dual stream
※ 1/2.8" CMOS, 20x optical zoom, D/N, WDR
※ Image flip for stand / suspended installation
※ Special design of driver system, PTZ postioning precision up to +/-0.05°

Technical Specification

Model No.	AC3-S2007N-IR
Camera
Image Sensor	1/2.8" type solid state Progressive Scan CMOS
Effective Pixel	2.14MP
Video Output	HD:1080p30 / 1080p25 / 720p30 / 720p25 ; SD: PAL/NTSC
Min.Illumination	0.5Lux(Lights Off); 0.1Lux(Lights On)
White Balance	Auto
Focus	Auto / Manual
Exposure	Auto / Manual
S/N Ratio	Note less than 50 Db
BLC	On / Off
WDR	On / Off
Digital Noise Reduction	1 - 5Steps/OFF
Day/Night	Auto / Manual
Lens	f=4.7mm - 94mm, F1.6 to F3.5
View Angle	59.5° (wide) to 3.3° (tele)
Zoom	Optical: 20X; Digital: 12X
PTZ
Pan Range	360° Continuous
Pan Speed	0.1° - 60°/s, adjustable
Tilt Range	- 15 ° - 90° with auto flip
Tilt Speed	0.2° - 60°/s, adjustable
Preset Speed	Pan: 50°/s; Tilt: 50°/s
Preset Number	256
Preset Precision	±0.05°
IR Light
IR Wave Length	850nm
Range	60m
Switch	Auto / Manual
Network
Max. Image Resolution	1920 x 1080
Max. FPS	50Hz: 25fps(1920x1080) / 25fps(1280x720); 60Hz: 30fps(1920x1080) / 30fps(1280x720)
Image Compression	H.264 baseline profile
Audio Compression	ACC
Protocol	IPv4, HTTP, HTTPS, 802.1,QoS, FTP, SMTP, UPnP, SNMP
No.of User Access	Up to 10
Dual Stream	Support
Interface
Audio In	One channel in, line input, audio peak: -2.4V(p-p); output impedance: 1k ± 10%
Audio Output	One channel out, impedance: 600
Video Output(SD)	CVBS1.0V(p-p)/75 PAL or NTSC(optional)
Ethernet Interface	RJ45, 10/100M
Comm. Interface	RS-485
General
OSD Lanuage	English
Comm. Interface	RS-485
Comm.Protocol	PELCO-P / PLECO-D(self-adaptive)
Video Interface	HD: HD-SDI & SD: CVBS
Protocol	2400bps, 4800bps,9600pbs,19200bps(self-adaptive)
Address	0-255
Voltage	DC 9 - 36V
Power	0.5W(Standby); 20W(Max)
Working Temperature	-35°C - +65°C
IP Code	IP66
Dimensions	Standard(Without Damper): Φ136(mm) x 185(mm)
Weight	Standard(Without Damper): 2.1(±0.2)kg
